PET TAPE FOR ELECTRICAL MOTORS (102)
https://www.atyt.es/shop/pet-tape-for-electrical-motors-102-607 https://www.atyt.es/web/image/product.template/607/image_1920?unique=9107083| Length: 66 m |
| Thickness: 60 µm |
| Liner color: Without Liner |
| Adhesive type: Rubber |
| Packaging type: Bulk |
Share:

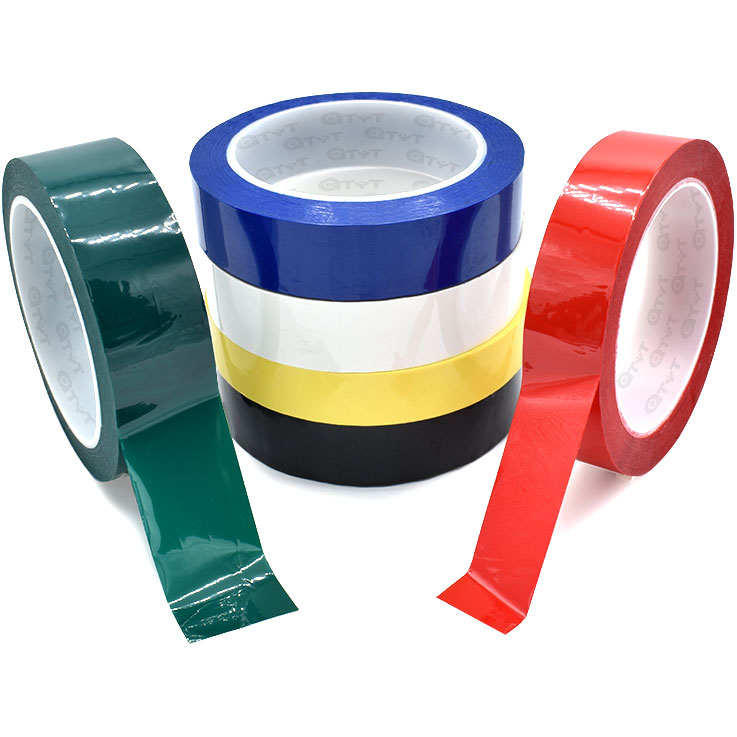

PET TAPE FOR ELECTRICAL MOTORS
UL PET Tape for Electric Motor Insulation
PET tape (polyethylene terephthalate) with UL 102 certification is a key component in the insulation of electric motors. Its primary function is to provide electrical insulation, ensuring the safety and efficiency of electrical equipment. Below, we detail its features, advantages and disadvantages, applications across different industries, ideal user profiles, and final conclusions.
COMPOSITION
Support (A): PET film
Adhesive type (B): Thermosetting rubber
KEY FEATURES
Material: Made from high-quality polyester film, offering strong mechanical resistance and thermal stability.
Adhesive: Pressure-sensitive adhesive (usually rubber-based) for strong and reliable bonding.
Temperature resistance: Withstands high temperatures, making it ideal for demanding environments.
Electrical insulation: Excellent dielectric properties prevent short circuits and ensure safety.
UL 102 certification: Guarantees compliance with international standards for safety and performance.
PROS AND CONS, WHY CHOOSE?
✅ Advantajes
- High heat resistance: Perfect for high-temperature environments.
- Mechanical durability: Withstands stress, vibration, and wear.
- Flexibility: Easy application on irregular or tight surfaces.
- Chemical resistance: Works well in harsh industrial conditions.
⚠ Disadvantages
- Cost: Higher price compared to non-certified alternatives.
- Manual application: Requires care during installation to ensure proper insulation.
APPLICATIONS AND SECTORS OF USE
🔧 Home appliances
- Motors and circuits in washing machines, refrigerators, etc.
🏗 Aerospace and railway
- Safety-critical electrical systems.
🚗 Automotive
- Wire harnesses and electrical insulation in vehicles.
⚡ Energy sector:
- Transformers and generators.
🎯 What type of consumers is it intended for?
- Electric motor manufacturers
- Industrial maintenance teams
- Electrical engineers and designers
- Electrical components distributors
CERTIFICATIONS
In the "Documents" tab you will find the certifications that our product has.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
PRODUCT REVIEWS
UL 102 PET tape is a top-tier solution for electrical insulation. Its thermal resistance, durability, and global certification make it a trusted product for demanding industrial applications. With proper use, it guarantees efficiency, safety, and longevity for your electrical systems.
RELATED PRODUCTS
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
| ADHESIVE PROPERTIES | VALUES | METHOD |
|---|---|---|
| Carrier thickness
|
23 µm | ASTM D-3652
|
|
Total thickness
|
60 µm
|
ASTM D-3652
|
|
Tensile strength |
40 N/cm
|
ASTM D-3759
|
|
Elongation at break |
90 %
|
ASTM D-3759 |
|
Adhesion to steel |
3,8 N/cm
|
ASTM D-3330 |
|
Adhesion to backing |
2,2 N/cm
|
ASTM D-3330
|
|
Dielectric strength |
4,5 kV |
CEI EN 60454
|
|
Maximum temperature of service |
130ºC
|
INTERNAL
(Cycles of 1h)
|
A: Outside diameter (mm)
B: Inner diameter (mm)
C: Width (mm)
D: Length (m)
| A |
110 mm |
|||
| B |
76 mm
|
|||
| C | 12, 19, 25, 50, 100 mm | |||
| D | 66 m | |||
