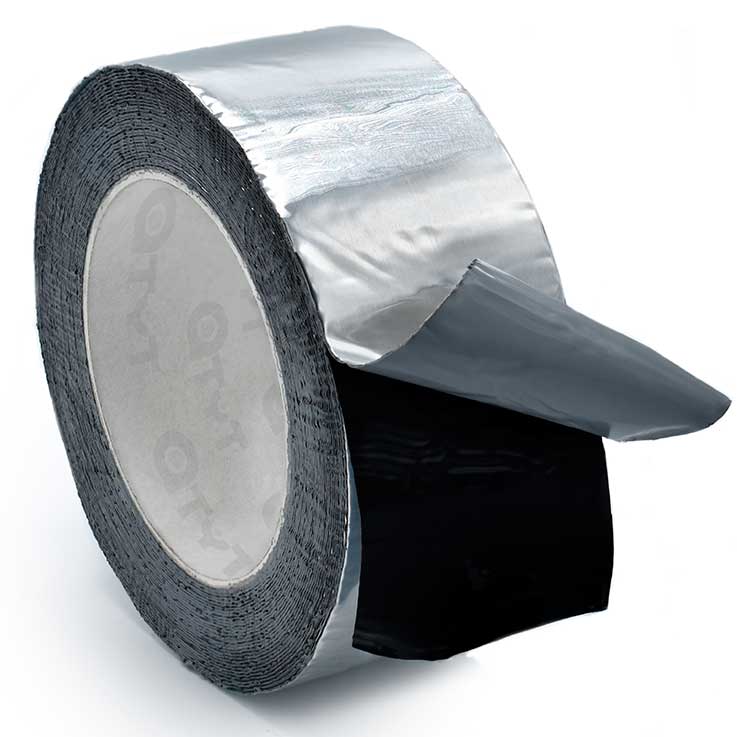

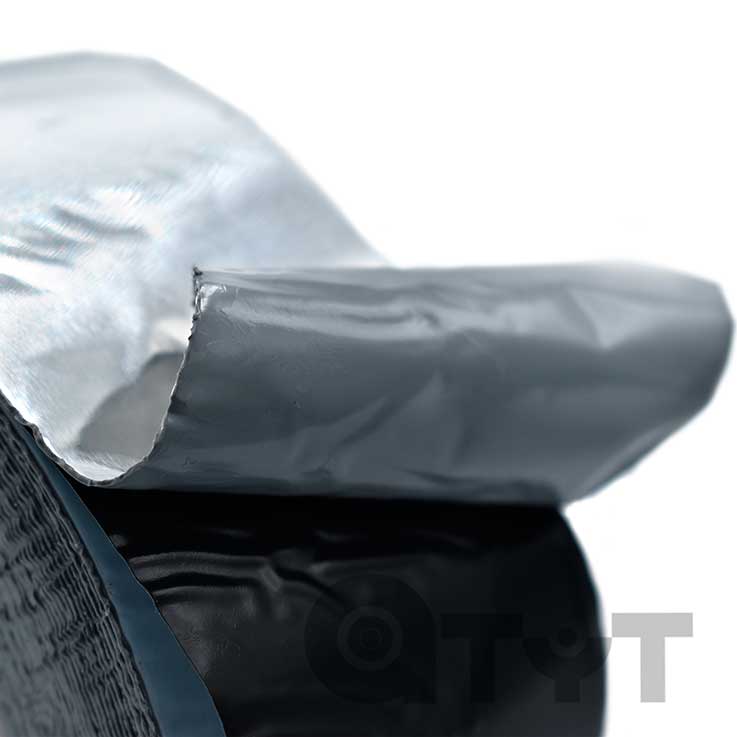

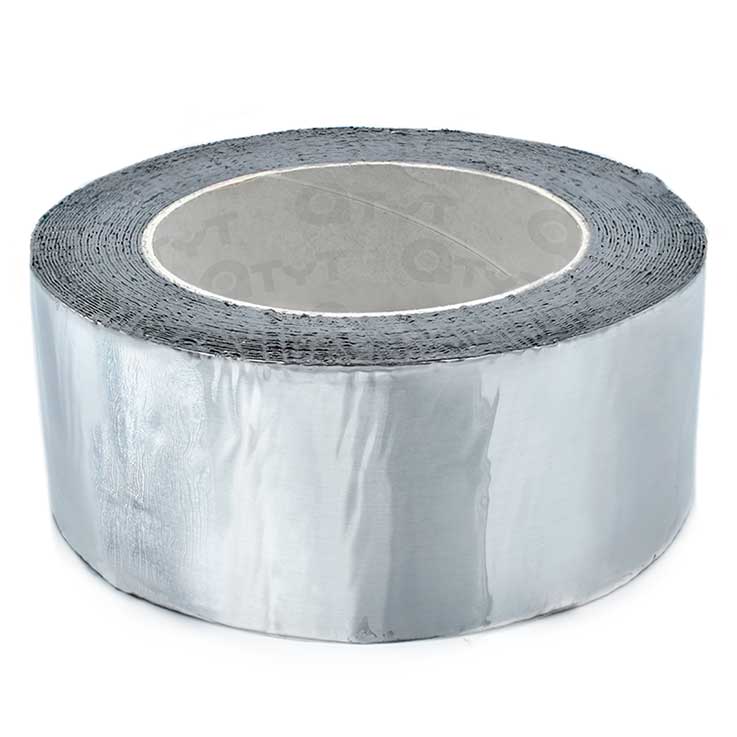

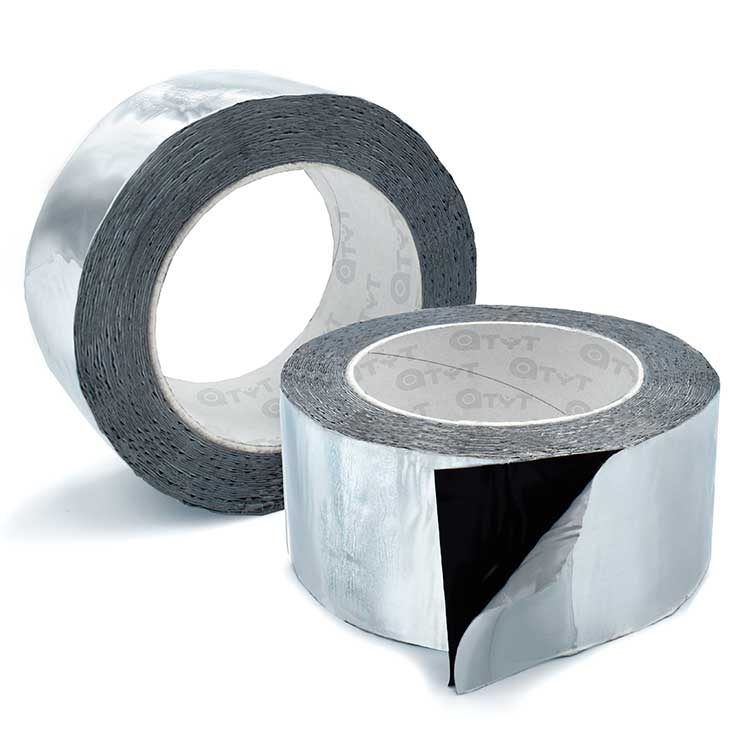

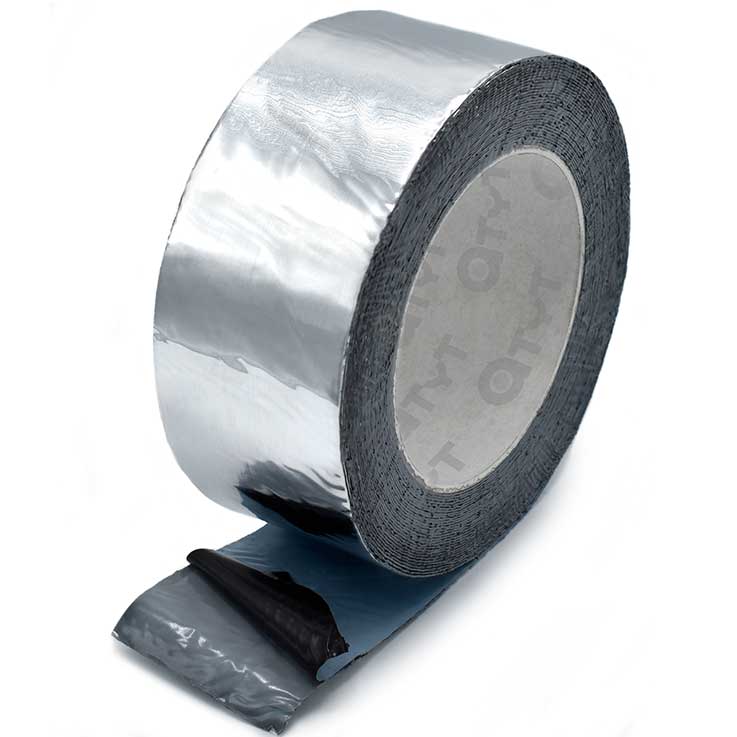

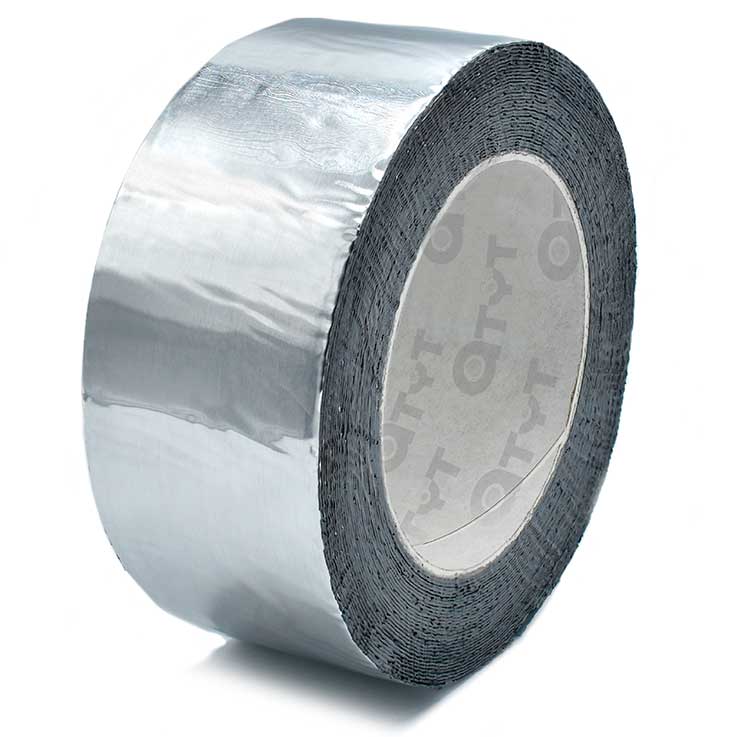

- BUTYL ALU-PET TAPE (0,8 mm THICKNESS) [ALUMINUM COLOR] (103)
BUTYL ALU-PET TAPE (0,8 mm THICKNESS) [ALUMINUM COLOR] (103)
https://www.atyt.es/shop/butyl-alu-pet-tape-0-8-mm-thickness-aluminum-color-103-103 https://www.atyt.es/web/image/product.template/103/image_1920?unique=0614d69Length: 10 m |
Thickness: 0.8 mm |
Support color: Aluminum |
Liner color: Grey |
Adhesive type: Butyl |
Packaging type: POF Shrinked |
Share:
Composition

Support upper part (A): Aluminium film of 25 µm
Support lower part (A):
PET film of 23 µm
Adhesive (B): Elastomeric modified butyl rubber
Liner (C): PP film of 70 µm
Features

CE certification according to EN
13967 - Waterproofing for the construction sector; 0620-CPR-87912
certification.

Excellent level of waterproofing.

Highly adaptable, offering a high
level of conformability.

Good level of adhesion on a wide
range of surfaces.

CE certification according to EN
13967 - Waterproofing for the construction sector; 0620-CPR-87912
certification.
Applications

Universal use in waterproofing, repairs and permanent sealing.
Applications on a multitude type of surfaces.
Sealing and joining of materials such as glass, steel, concrete, stone, wood, aluminum, etc.
Waterproof sealing of joints to water vapor in the construction sector.
Si se aplica sobre superficies porosas, se recomienda usar imprimación (Tipo PR3).
Certifications
In the "Documents" tou will find the certifications that our product has.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
Usual Presentation
Access the specific tab in the item's data sheet.
Any other width and length available on request. We offer the possibility of customising the mandrel or packaging of the product of your choice.
Ask us about the various customization options and how we can help you.
Contact Us
Related products
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
ADHESIVE PROPERTIES | VALUES | METHOD |
---|---|---|
Total Thickness |
0.8 mm
|
ASTM D-3652
|
Watertightness |
Approved |
IN 1928 + IN 1847
|
Tensile strenght |
≥ 2 N/mm2
|
IN 12311-2
|
Elongation at break |
≥ 10%
|
IN 12311-2
|
Adhesion to steel |
≥ 11 N/cm
|
ASTM D-3330
|
Impact resistance |
≥ 300 mm
|
IN 12691
|
Resistance to static loading |
≥ 10 kg
|
IN 12730-METHOD B
|
Tear resistance |
≥ 30 N
|
IN 12310-2
|
Join strenght |
≥ 240 N/cm
|
IN 12317-2
|
Loop Tack |
≥ 33 N
|
ASTM D-6195
|
Moisture resistance factor |
≥ 230.000 µm
|
IN 1931
|
Aplication temperature range |
[+5ºC - +35ºC]
|
INTERNAL |
Service temperature range |
[-20ºC - +80ºC]
|
INTERNAL |

A: Outside diameter (mm)
B: Inner diameter (mm)
C: Width (mm)
D: Loength (m)
A |
120 mm
|
|||
B |
76 mm
|
|||
C | 100, 150, 200, 250, 300 mm | |||
D | 10 m |
Composition

Support upper part (A): Aluminium film of 25 µm
Support lower part (A):
PET film of 23 µm
Adhesive (B): Elastomeric modified butyl rubber
Liner (C): PP film of 70 µm
Features

CE certification according to EN
13967 - Waterproofing for the construction sector; 0620-CPR-87912
certification.

Excellent level of waterproofing.

Highly adaptable, offering a high
level of conformability.

Good level of adhesion on a wide
range of surfaces.

CE certification according to EN
13967 - Waterproofing for the construction sector; 0620-CPR-87912
certification.
Applications

Universal use in waterproofing, repairs and permanent sealing.
Applications on a multitude type of surfaces.
Sealing and joining of materials such as glass, steel, concrete, stone, wood, aluminum, etc.
Waterproof sealing of joints to water vapor in the construction sector.
Si se aplica sobre superficies porosas, se recomienda usar imprimación (Tipo PR3).
Certifications
In the "Documents" tou will find the certifications that our product has.
In case you need any other type of certification to apply the product in your field, please contact us.
Discover more
Usual Presentation
Access the specific tab in the item's data sheet.
Any other width and length available on request. We offer the possibility of customising the mandrel or packaging of the product of your choice.
Ask us about the various customization options and how we can help you.
Contact Us
Related products
