Aluminum butyl tape
WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DESBOBINADA_POR_ARRIBA
WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DESBOBINADA-_POR_ABAJO
WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DETALLE
WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_PERFIL
WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_TUMBADA
  1. Aluminum butyl tape
  2. WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DESBOBINADA_POR_ARRIBA
  3. WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DESBOBINADA-_POR_ABAJO
  4. WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_DETALLE
  5. WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_PERFIL
  6. WEB_ATyT_BUTILO_ALUMINIO_COLOR_ALUMINIO_TUMBADA

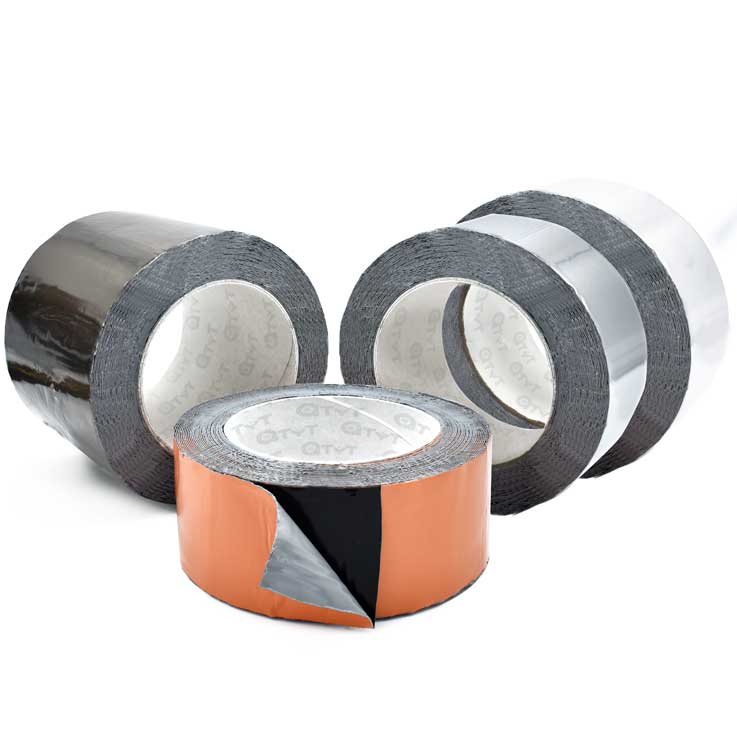

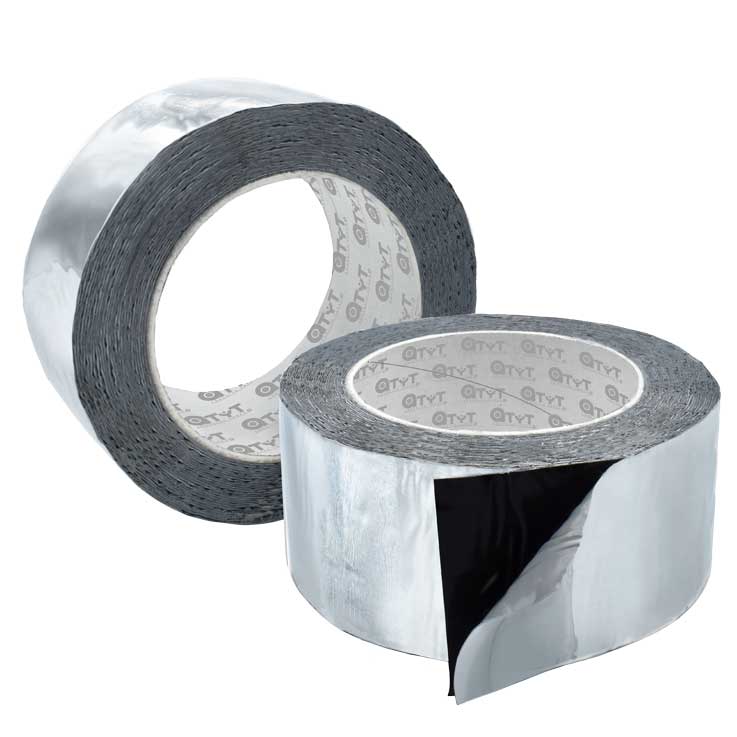

Aluminum butyl tape

Butyl aluminium tape provides a waterproof seal, high adhesion and long-lasting protection for outdoor use.

SIMPLE CARA - AUTOMOCIÓN SIMPLE CARA - CONSTRUCCIÓN Y AISLAMIENTO SIMPLE CARA - BRICOLAJE SIMPLE CARA - SUMINISTRO ELÉCTRICO Y ELECTRÓNICO SIMPLE CARA - PROTECCIÓN

  • Support color - Aluminum
  • Liner color - Grey
  • Width
  • Length
  • Thickness
  • Adhesive type
  • Packaging type
Liner color: Grey
Adhesive type: Butyl
Volumen
Interested?
Request a quote
Portes
Shipping and Conditions

Aluminum butyl tape

ATyT's aluminum butyl tape is designed for technical applications where watertight sealing, high adhesion and resistance against moisture, leaks and external agents are required. Manufactured with a butyl adhesive mass and reinforced with an aluminum foil laminated onto a polyester film, this aluminum butyl tape provides a reliable and durable solution for technical sealing and waterproofing applications.

The reinforced structure of the waterproof aluminum butyl tape incorporates a polyester film that helps prevent tearing and improves the product's mechanical stability during installation and service life. Thanks to this combination of materials, the butyl tape offers excellent conformability and adaptation to irregular surfaces, curves, metal joints and construction finishing details.

The butyl sealing tape is commonly used in waterproof sealing applications where it is necessary to prevent water infiltration, air penetration or moisture ingress. Its high adhesion capability makes aluminum butyl a widely used solution for roofs, skylights, sandwich panels, chimneys, ducts and metal enclosures.

The reinforced structure of the waterproof aluminum butyl tape incorporates a polyester film that helps prevent tearing and improves the product's mechanical stability during installation and service life. Thanks to this combination of materials, the butyl tape offers excellent conformability and adaptation to irregular surfaces, curves, metal joints and construction finishing details.

The butyl sealing tape is commonly used in waterproof sealing applications where it is necessary to prevent water infiltration, air penetration or moisture ingress. Its high adhesion capability makes aluminum butyl a widely used solution for roofs, skylights, sandwich panels, chimneys, ducts and metal enclosures.

ATyT offers aluminum butyl tape in 0.6 mm and 0.8 mm thicknesses, allowing the solution to be adapted depending on the application requirements. The 0.6 mm thickness (available in aluminum, white, bright, lead and terracotta colors) offers greater flexibility for corners, finishing details and adaptable applications, while the 0.8 mm version (available in aluminum color) provides a higher butyl mass and superior performance for outdoor applications and areas exposed to high humidity or structural movement.

Thanks to its high conformability and its characteristics as a high adhesion tape, this product allows fast, clean and secure applications in both construction and technical industrial installations.

The adhesive solutions developed by ATyT are designed to provide durability, watertight performance and industrial reliability in professional sealing applications.


ADHESIVE PROPERTIES

VALUES

Total thickness 0.6 mm - 0.8 mm
Watertightness Approved
Bonding strength ≥ 240 N/cm

Tearing streght

≥ 33 N

Operating Temperature Range

+5ºC a +35ºC

Service Temperature Range

-20ºC a +80ºC

Key advantages of the Aluminum butyl tape

  • Excellent adhesion on multiple technical surfaces
  • High waterproof performance against moisture and leaks
  • Polyester reinforcement to prevent tearing
  • Excellent outdoor performance
  • Ideal for roofing, trims and technical sealing

Application conditions for butyl aluminium tape

To ensure optimal performance of the aluminum butyl tape:

  • The surface must be clean, dry and free from grease or oil
  • Uniform pressure must be applied during bonding
  • Insufficient pressure may affect adhesive properties and final appearance

Aplicación de la cinta de  butilo aluminio - ATyT

Aluminum Butyl Tape Use Case

José contacted the ATYT team after several months trying to resolve water leaks on one of his client's roof. After trying different alternatives without success, he needed a reliable solution that was quick to apply and durable against weather conditions.

After analyzing the application and roof conditions, our technical department recommended the ATYT aluminum butyl tape, specifically designed for sealing, weatherproofing and waterproofing work. We sent him a sample to conduct the necessary tests.

The results were immediate. Thanks to its excellent adhesion and ability to adapt to surface irregularities, the tape completely eliminated the leaks. He now regularly uses it in roof repair and protection work, offering his clients an effective and durable solution.


Having the same issue? Contact our team!

Related Products


Cinta adhesiva de aluminio - ATyT

Aluminum adhesive tape

Cinta adhesiva de aluminio de color blanco o negro - ATyT

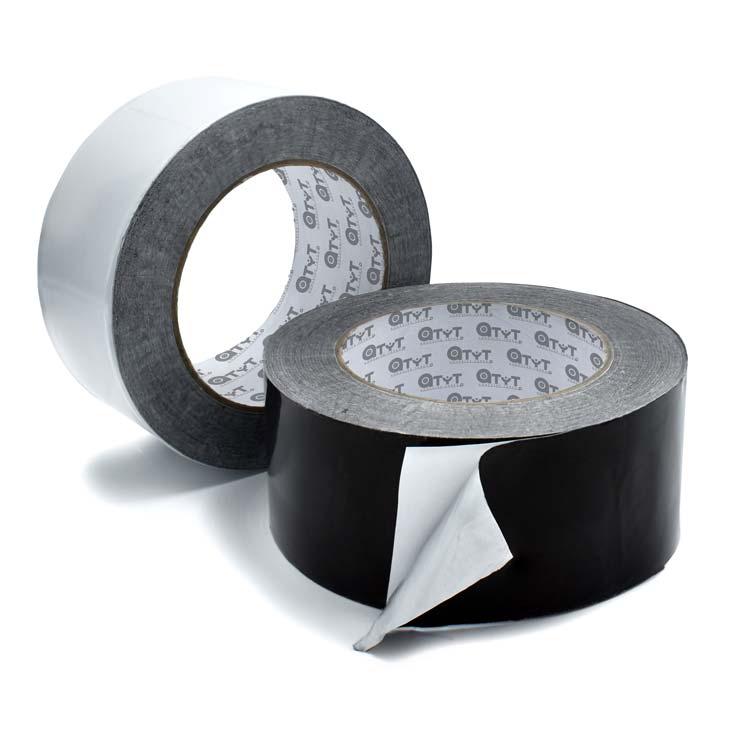

Black colored aluminum adhesive tape

Universal duct tape

Universal duct tape

Cointa de aluminio reforzado 5x5 - ATyT

Reinforced aluminum tape

3x3 and 5x5

Cinta adhesiva de espuma NBR - ATyT

NBR foam

adhesive tape

cinta aislante PVC Gekkota

PVC insulating tape Gekkota

Questions Fréquemment Posées

What surfaces does this aluminum butyl tape accept?

This ATYT aluminum butyl tape is designed to adhere to a wide variety of surfaces, including: clay and concrete tiles, galvanized zinc, steel, aluminum, fiber cement, PVC and thermoformed plastics. Its excellent adhesion capacity allows secure bonding even on irregular, porous surfaces or those with slight oxidation.

Where can aluminum butyl tape be used?

Aluminum butyl tape is a waterproof sealing solution designed for applications exposed to weather, moisture and thermal demands. It is especially valued in work where sealing must last and cannot fail.

On roofs and coverings, it is used to waterproof trims, sandwich panels and metal connections. It is the standard option when working in areas continuously exposed to rain and moisture.

In exterior construction, it allows sealing joints, skylights, chimneys and any critical area of the enclosure where long-term weatherproofing is essential. Its exterior resistance makes it reliable even in adverse weather conditions.

In technical and industrial installations, it protects against leaks in ducts, metal enclosures and systems subjected to temperature changes and vibrations. In these environments, butyl's ability to remain flexible without losing adhesion makes the difference.

If your project involves sealing against water, weather or thermal movements, aluminum butyl tape is one of the most reliable solutions on the market. Do you have doubts about whether it's right for your project or installation? Tell us and we'll guide you

Can I apply it to a wet roof or one with residual moisture after rain?

It is not recommended. For butyl to correctly activate its adhesion, the surface must be dry and clean. Applying it to damp surfaces compromises the seal from the start and can cause premature peeling, especially in areas where weatherproofing is most needed.

At what temperature can it be applied?

The recommended application temperature is between +5 °C and +35 °C. Its service range once installed is -20 °C to +80 °C.

Why does it have a polyester film if it already has aluminum?

The polyester reinforcement prevents tearing during installation and improves mechanical stability in service, especially at corners and trims where aluminum alone could crack.

What thickness do I need for my application?
  • 0.6 mm: greater flexibility, ideal for trims, corners and finishes. Available in various colors (aluminum, white, bright, lead, tile).
  • 0.8 mm: greater mass of butyl, superior performance outdoors with high moisture or structural movement. Available in aluminum color.
How do I correctly seal a roof leak with this tape?

Clean and dry the affected area. Apply the tape by exerting uniform pressure with a roller or spatula from the center toward the edges. Insufficient pressure compromises adhesion and final weatherproofing.

Is it valid for sandwich panels and industrial enclosures?

Yes. It is one of its most common applications: sealing longitudinal and transverse joints in sandwich panels, securing trims and protecting connections in metal enclosures.

When sealing a joint between sandwich panel and metal trim, how do I avoid wrinkles or creases in the tape when folding it at corners?

The key is to make small "V" cuts in the tape edge before folding, especially at 90° corners. This allows the material to adapt without accumulating tension or forming wrinkles that could create channels for water to seep through. After each cut, press firmly with a roller or spatula from the center toward the edges to ensure full contact of the butyl with the surface.

What equivalent products exist on the market?

Adhesivos Técnicos y Troquelados specializes in advising its customers in the search for equivalent products from major adhesive tape manufacturers, to propose more effective and efficient adhesive solutions. Specifically for this article, these are the alternative references with which the major adhesive tape manufacturers work:

  • Soudal – Soudal Butyband Alu
  • Tremco / illbruck – Illbruck ME402
  • Nitto – Nitto EcoFlash EF400 (0.4 mm)
  • HB Fuller – Foilband 0316 (0.6mm) / Foilband 0317 (0.8mm)

Su fragmento dinámico se mostrará aquí... Este mensaje se muestra porque no proporcionó un filtro y una plantilla para usar.

More than 1,500 customers have already placed their trust in ATyT.

Do you want to offer adhesive solutions that are up to the task of your projects?​

Contact our technical team, and we’ll help you choose the adhesive tape that best suits your needs.
