DOUBLE SIDED ACRYLIC FOAM “VHB” TAPE (0,8 mm) (12)
https://www.atyt.es/shop/double-sided-acrylic-foam-vhb-tape-0-8-mm-12-1531 https://www.atyt.es/web/image/product.template/1531/image_1920?unique=aae2e79Length: 33 m |
Thickness: 0.8 mm |
Liner color: Red |
Adhesive type: Acrylic |
Packaging type: Bulk |
Share:

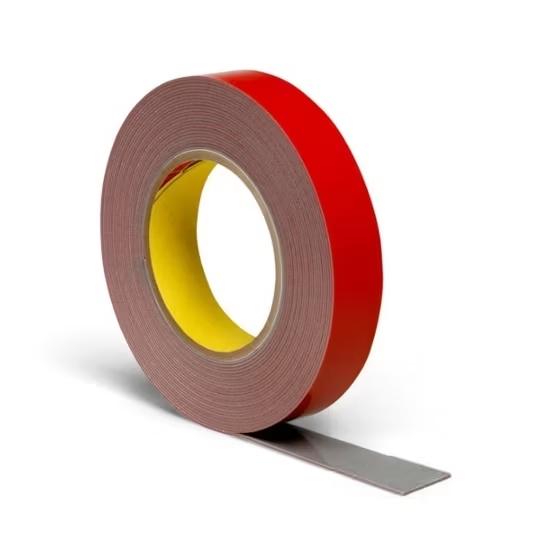

DOUBLE SIDED ACRYLIC FOAM “VHB” TAPE
Strong, Aesthetic, Screw-Free Bonding Solution
The 0.8 mm double-sided VHB acrylic adhesive tape is a high-performance bonding solution designed to replace mechanical fasteners like screws, rivets, and welding in industrial and commercial applications. Made of viscoelastic acrylic foam with pressure-sensitive adhesive on both sides, this tape ensures reliable adhesion, excellent stress distribution, and clean finishes.
COMPOSITION

Liner (A): PET
Adhesive type (B): Acrylic
Support (C): Acrylic foam
Adhesive type (D): Acrylic
KEY FEATURES

Thickness: 0.8 mm – Optimal balance between flexibility and structural strength
Automation-friendly – Can be applied manually or with automated dispensers
Electrical insulation – Suitable for electronic and electrical assembly
Acrylic adhesive – High-performance bonding on metals, glass, and high-energy plastics
Conformable – Adapts to irregular or curved surfaces
Thermal resistance: withstands extreme temperatures, maintaining its integrity in hot and cold conditions.
Viscoelastic foam – Absorbs vibrations, movement, and distributes loads evenly
Weather-resistant – Withstands moisture, UV rays, ozone, and chemical exposure
PROS AND CONS, WHY CHOOSE IT?
✅ Advantages
- Eliminates screws, rivets, and welding
- Clean and aesthetic finish (no visible fasteners)
- Even load distribution for improved durability
- Fast and tool-free application
- Resistant to harsh environments
⚠ Disadvantages
- Requires clean, dry surfaces for optimal adhesion
- May not bond well to low surface energy plastics (like PP or PE) without primer
- Not ideal for applications with high rigidity demands without mechanical support
APPLICATIONS AND SECTORS OF USE

🔧 General Industry
-
Bonding dissimilar materials in various production processes
🏗 Construction & Architecture
-
Facades, windows, panels, structural glazing
🚗 Automotive
-
Badges, trims, panels, electronics, and more
⚡ Electronics & Appliances
- Displays, covers, touchscreens, assembly
🎯 Target Users
- Industrial engineers and technical designers
- Manufacturers needing reliable and fast bonding
- Installers and contractors looking for easy application
- DIY users needing high-strength tape for home projects
CERTIFICATIONS
In the "Documents" tab you will find the certifications available for our product.
If you need any other type of certification to apply the product in your field, please contact us.
Discover more
PRODUCT REVIEWS
The 0.8 mm double-sided VHB acrylic tape is a cutting-edge solution for structural bonding in sectors like automotive, construction, electronics, and signage. It combines strength, flexibility, and aesthetics, eliminating the need for mechanical fasteners. Thanks to its advanced technical properties and ease of use, it has become the go-to option for professionals seeking clean, durable, and efficient bonding.
RELATED PRODUCTS
STORAGE CONDITIONS
For better preservation of its properties, the product should be stored in its original packaging at a temperature between 20 and 30ºC, protected from direct sunlight and moisture. It is recommended to use the product within 24 months after receipt.
GENERAL WARRANTY CONDITIONS
ATyT recommends that the contact surfaces be clean of grease, oil, dust or any other non-stick substance.
The technical data contained in this product specification is intended to guide the end user and does not imply a legal guarantee regarding certain properties, due to the numerous influences that may occur during the handling and use of the product.
Before use, the consumer must evaluate the suitability of the product for its specific purpose and will assume all risk and responsibility in relation to such use.
ADHESIVE PROPERTIES | VALUES | METHOD |
---|---|---|
Total thickness |
0,8 mm
|
ASTM D-3652 |
Adhesion to steel (Internal face) |
3,5 N/cm
|
ASTM D-3330
|
Adhesion to steel (External face) |
3,4 N/cm
|
ASTM D-3330
|
Elongation at break |
≥ 10 %
|
ASTM D-3759
|
Static shear resistance |
≥ 800 h
|
ASTM D-3330
|
Service temperature range |
[-20ºC ± 160ºC]
|
INTERNAL (1h cycles) |
Service temperature range |
[-20ºC ± 100ºC]
|
INTERNAL (8h cycles) |

A: External diameter (mm)
B: Inside diameter (mm)
C: Broad (mm)
D: Length (m)
A | 60 mm | 67 mm | 120 mm | 230 mm |
B | 20 mm, 76 mm | |||
C | 6 mm | 12 mm | 15 mm | 19 mm |
D | 1,5 m | 2,5 m | 10 m | 33 m |
